Name: Infinea Tab M iPhone 6/6s/7/8 Plus 2D Barcode Scanner (ITM-O2D-PH7P-KIT)
SKU: ITM-O2D-PH7P-KIT
Availability: InStock

Infinea Tab M iPhone 6/6s/7/8 Plus 2D Barcode Scanner (ITM-O2D-PH7P-KIT)

£649.20 ex. Tax / VAT

For bulk orders please contact us.

Infinite Peripherals IT M 2D with Magstripe Reader. Connects through Apple’s Lightning connector.
The kit includes Apto Flex Case (CS-T6P) and cable.

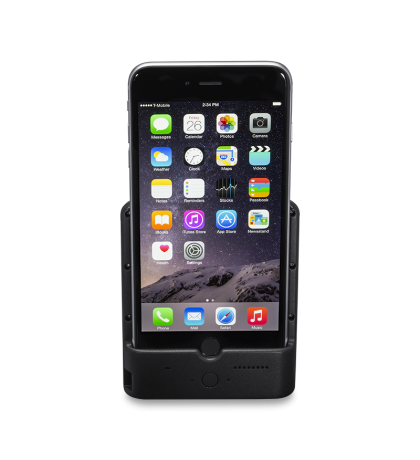

This Infinea Tab M works with the iPhone 6/6s/7/8 Plus. It converts the device into a powerful point of sale and barcode scanning solution suitable for use in multiple fields. It reads the most widely used 1D and 2D barcodes in business today as well as credit cards through the 3-track magstripe reader. It is compatible with over 100 existing iOS Apps and a SDK (Software Development Kit) is available allowing simple development and integration of new or existing Apps.

P/N: ITM-O2D-PH7P-KIT

Retail
Hospitality
Supply Chain
Event ticketing
Inventory control
Logistics
Pharmaceutical
Mass transit
Field service
Access control

Additional information

Device	iPhone 6/6s Plus, iPhone 7 Plus, iPhone 8 Plus
Barcode Type	2D Barcodes (also 1D)
Apple Model Number	A1634, A1687, A1699, A1522, A1524, A1593, A1661, A1784, A1785, A1864, A1897, A1898

Power Supply	DC 5V through mini USB DC 5V through Single or 5 stations charger
Device Charging	Charging via USB connector through mini-USB cable, using a minimum of 1A USB charger (AC adapter provided by Apple® is acceptable) Optional charging station (sold separately)
Compatibility	iPhone 6/7/8 Plus
Power Consumption	Deep sleep -20uA
Magnetic Stripe Reader	3-track bidirectional reading capabilities Type: ISO 7816-1/2/3 compatible & RAW mode
Barcode Scanner	Opticon MDI3100 – image sensor 752×480 CMOS
Barcode Type	1D symbologies: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code128, GS1-128 (EAN-128), GS1 DataBar(RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey. Postal codes: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code. 2D symbologies: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code(mode 2~5), MicroPDF41, QR & Micro-QR Code, PDF417
LEDs	Two LEDs for device and battery status Four LEDs for contactless payment transactions
Buttons	Scan and status buttons
Battery	Rechargeable Li-ion Battery 3,7V 1300mAh Charging from USB port or Single/Gang Charger
Cables	Standard USB A to mini B cable
Communications	USB Interface – between Infinea Tab Mini and iOS device USB Synchronization between iOS device & PC External RS
Audio Indicator	Electromagnetic Buzzer
Operating Environment	Operating temperature: 0°C to +40°C Operating humidity: 35 to 85% RH Storage temperature: -10°C to +50°C Storage humidity: 10 to 90% RH
Dimensions	103mm x 88mm x 23.5mm
Weight	140g with battery and 2D barcode reader (without device)
Software Support	SDK for iOS platform
Certifications	CE, FCC, Apple Mfi
